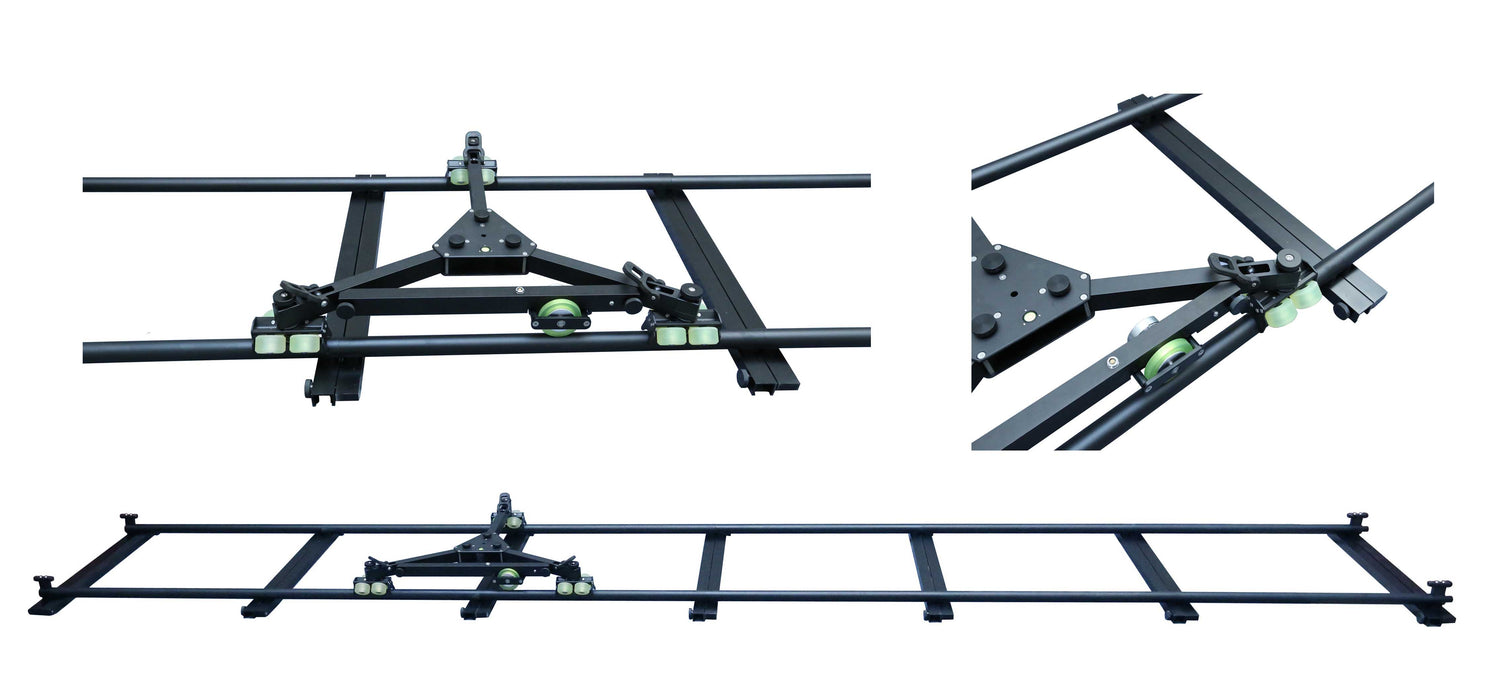

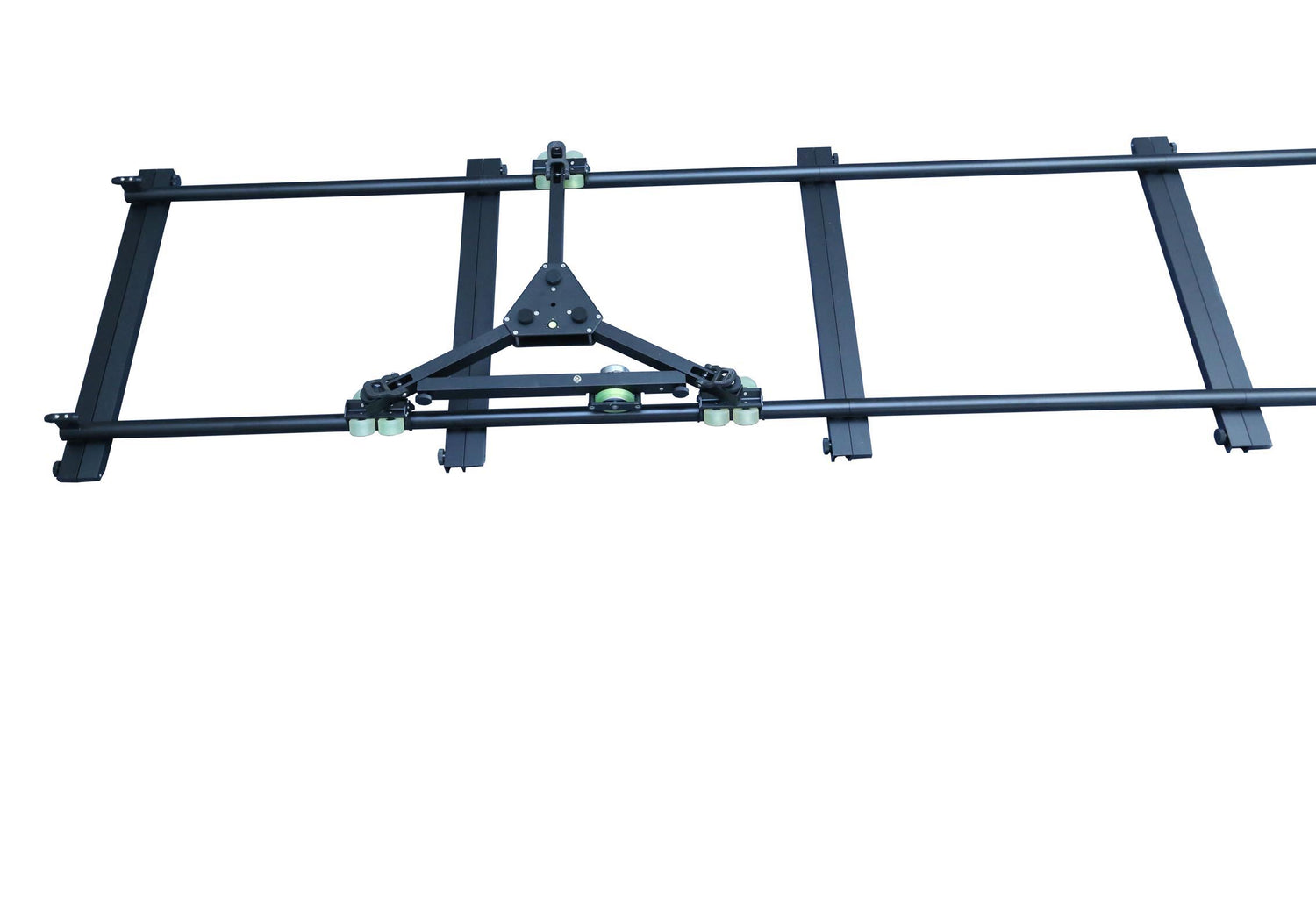

The Track Rail System takes your virtual productions to the next level with smooth and precise movements along 4.8 meters of professional track. This system transforms every dolly shot into a perfect tracking experience, seamlessly integrating positional data with virtual head data for total 3D environment control.

Ideal for LED wall and green screen productions requiring dynamic movements, the Track Rail System offers the flexibility to infinitely expand your creative space while always maintaining millimeter tracking precision.

TECHNICAL SPECIFICATIONS:

• System length: 4.8 meters
• Type: Modular aluminum rail
• Support dolly: Compatible with 15-30kg virtual heads
• Position encoder: High precision
• Expandability: Additional 0.8m modules
• Tracking protocol: genlocked FreeD

IMPORTANT NOTE: Virtual head and tripod sold separately (compatible with VirtualHead Light and Strong)

TRACKING & SOFTWARE COMPATIBILITY

Streams real-time genlocked tracking data over the industry-standard FreeD protocol, ready to use out of the box with the leading virtual production engines — Unreal Engine, Zero Density, Aximmetry, Vizrt, Pixotope, disguise, Pixera, Assimilate, and more — for AR, VR and XR productions.

SYSTEM INCLUDES:

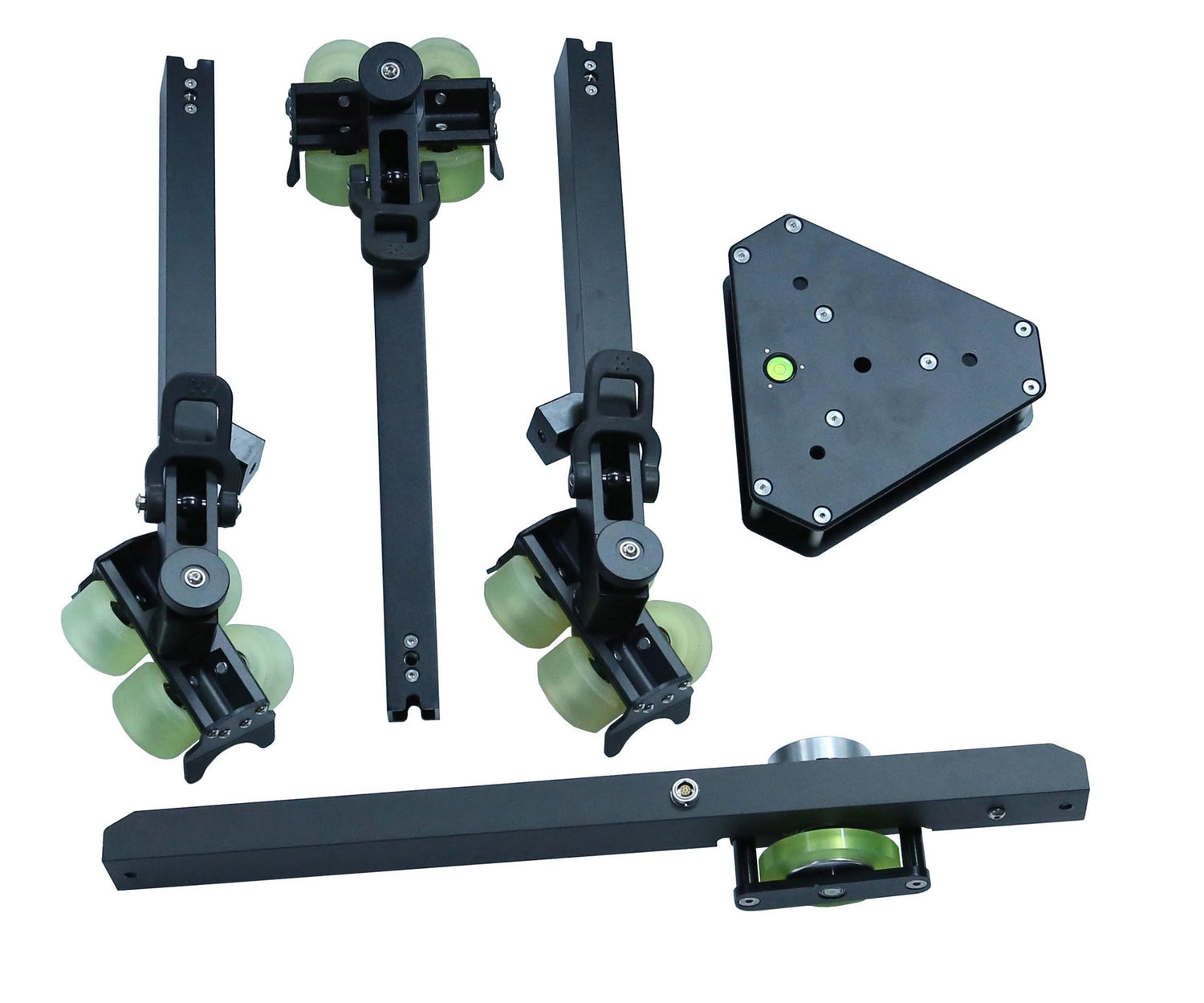

• 4.8m modular rail (6 sections of 0.8m each)

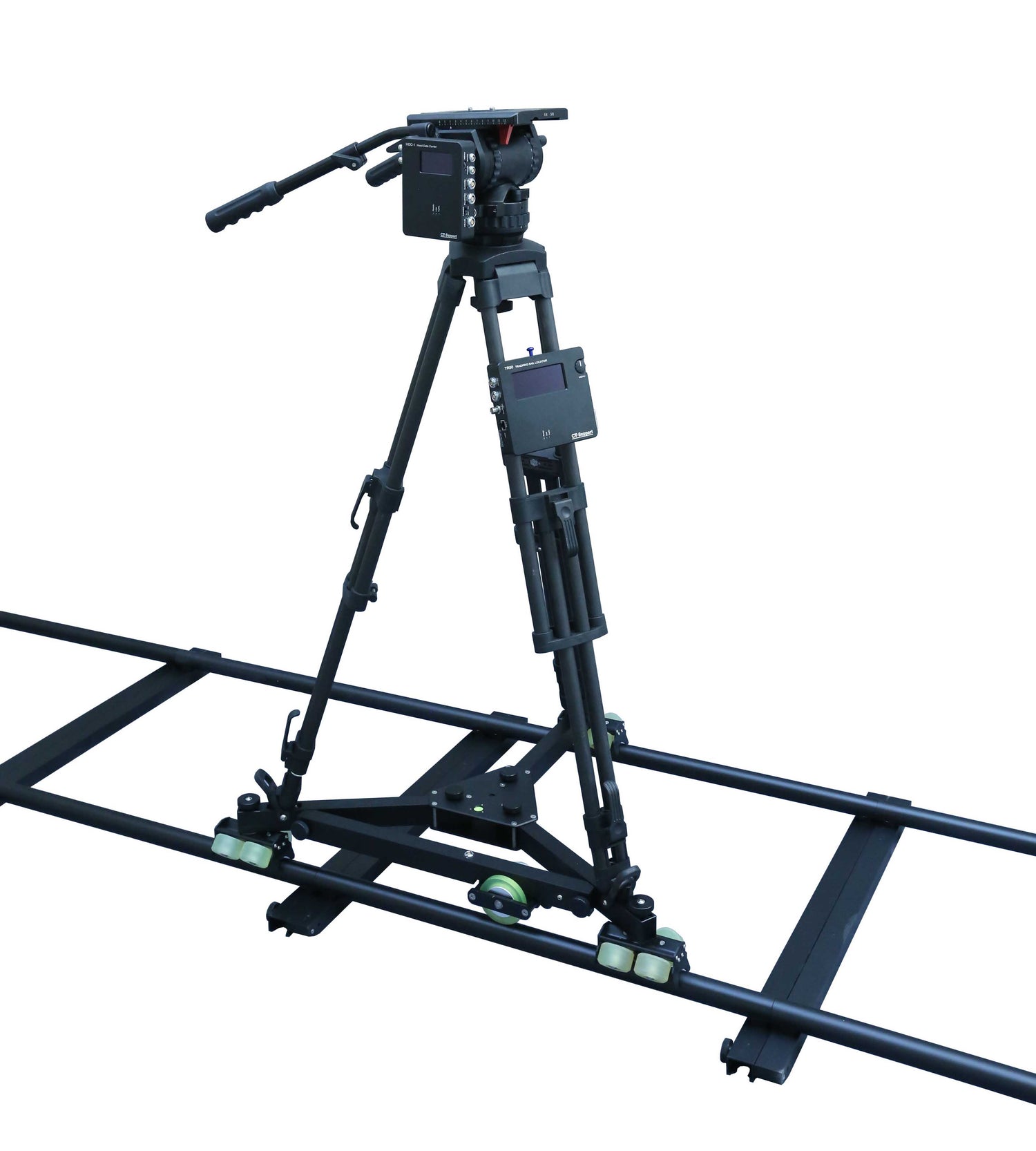

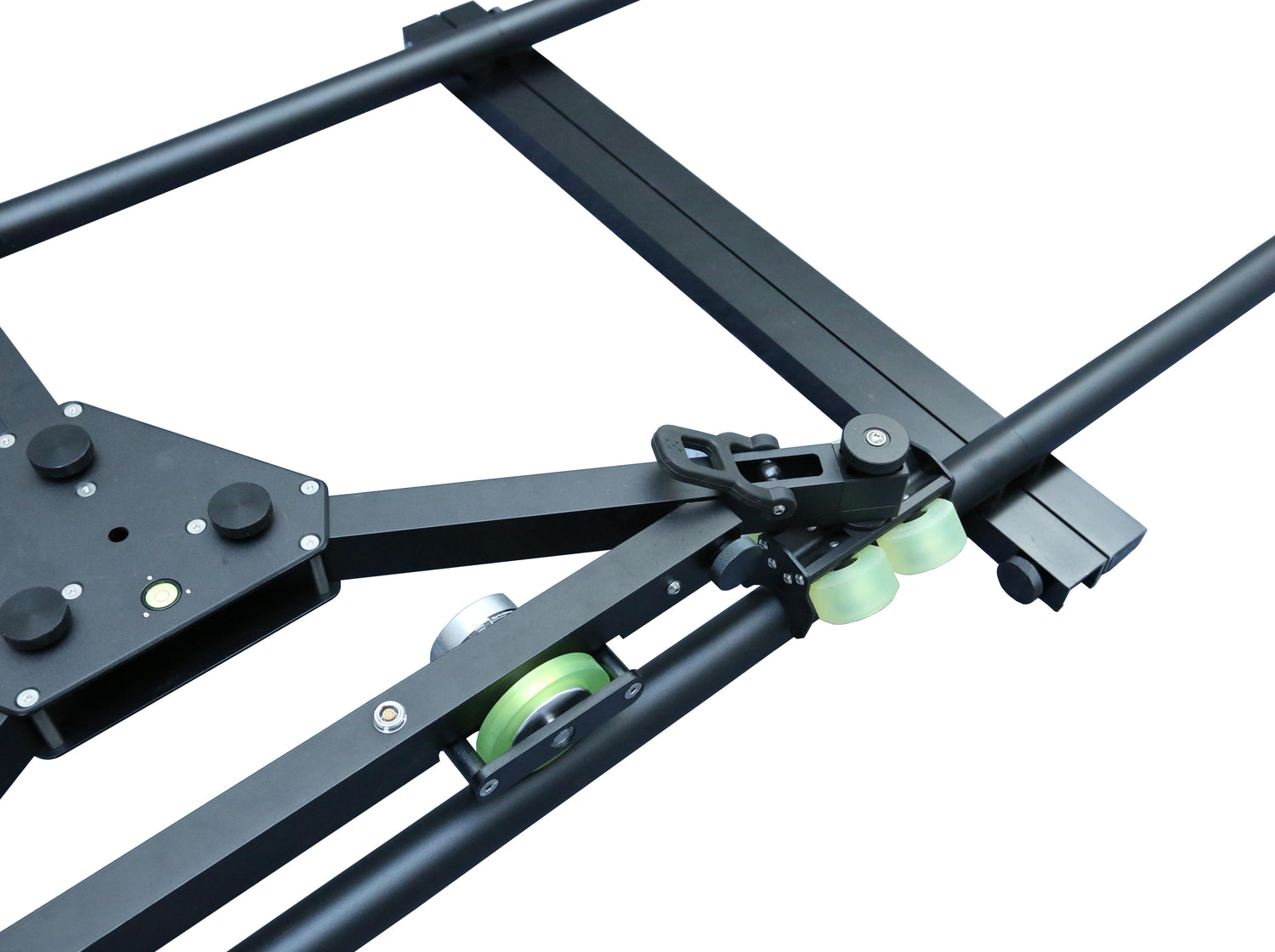

• Tripod support dolly
• Linear position encoder

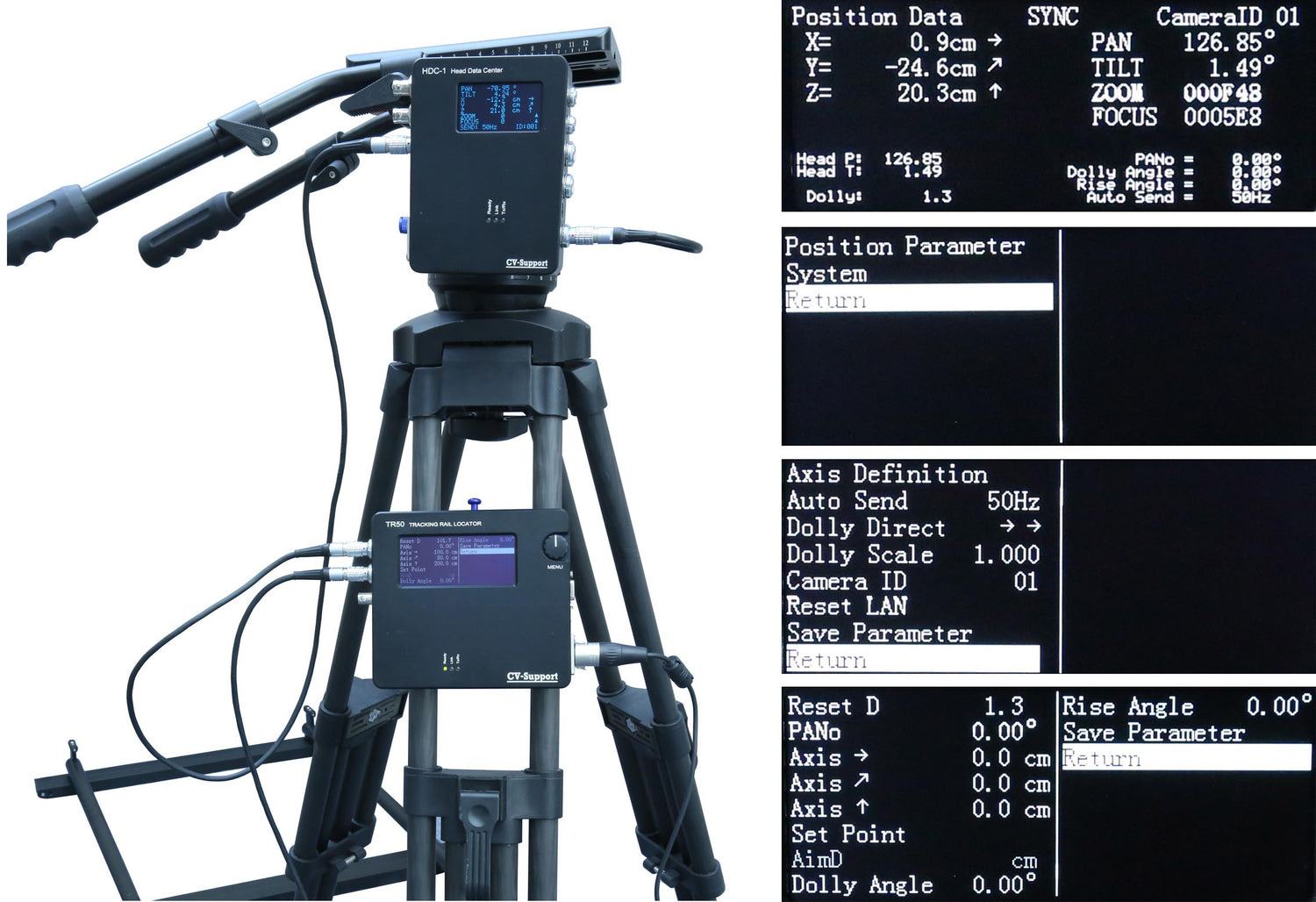

• Dedicated VR Box (merges head + movement data)
• Internal cabling system

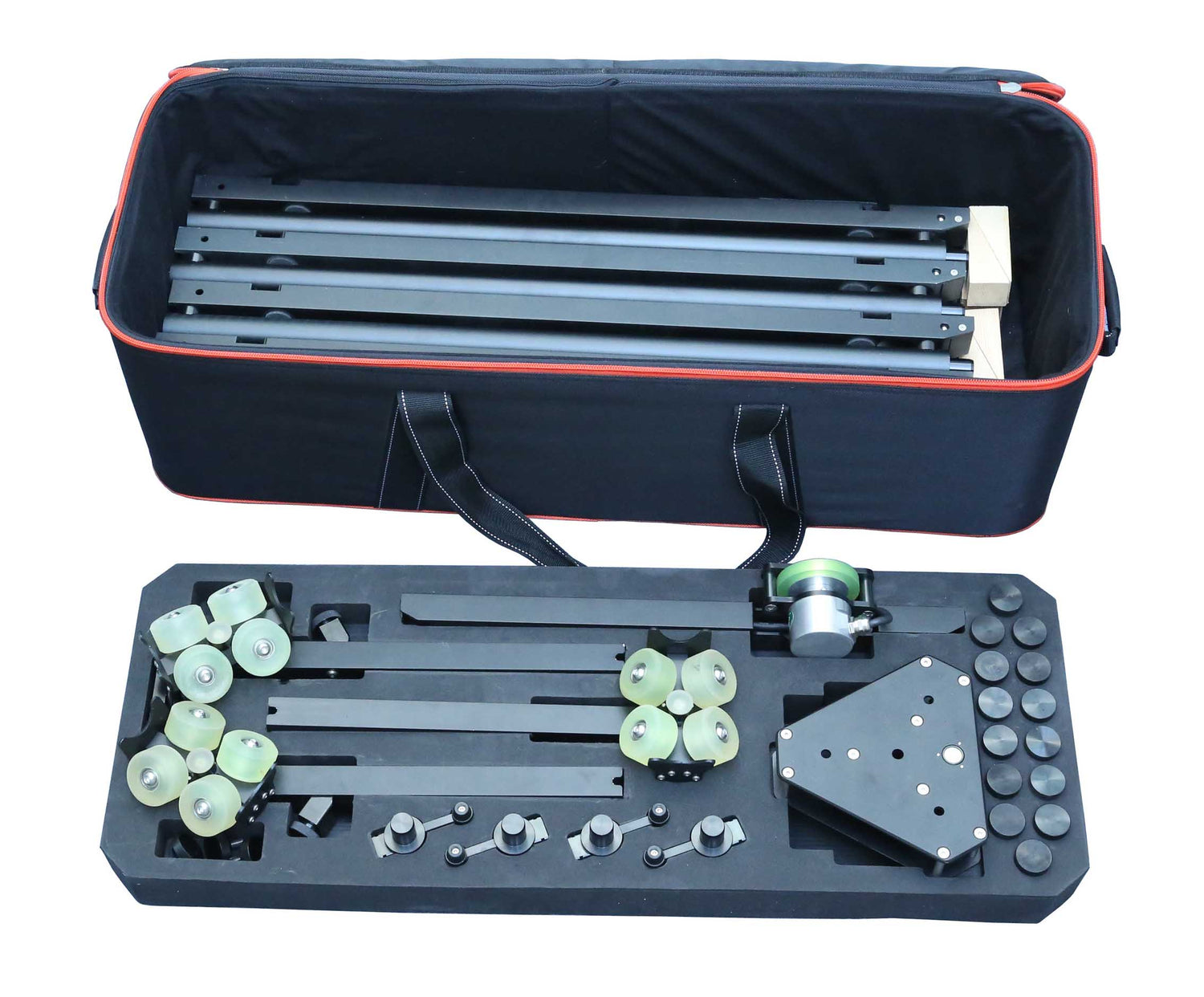

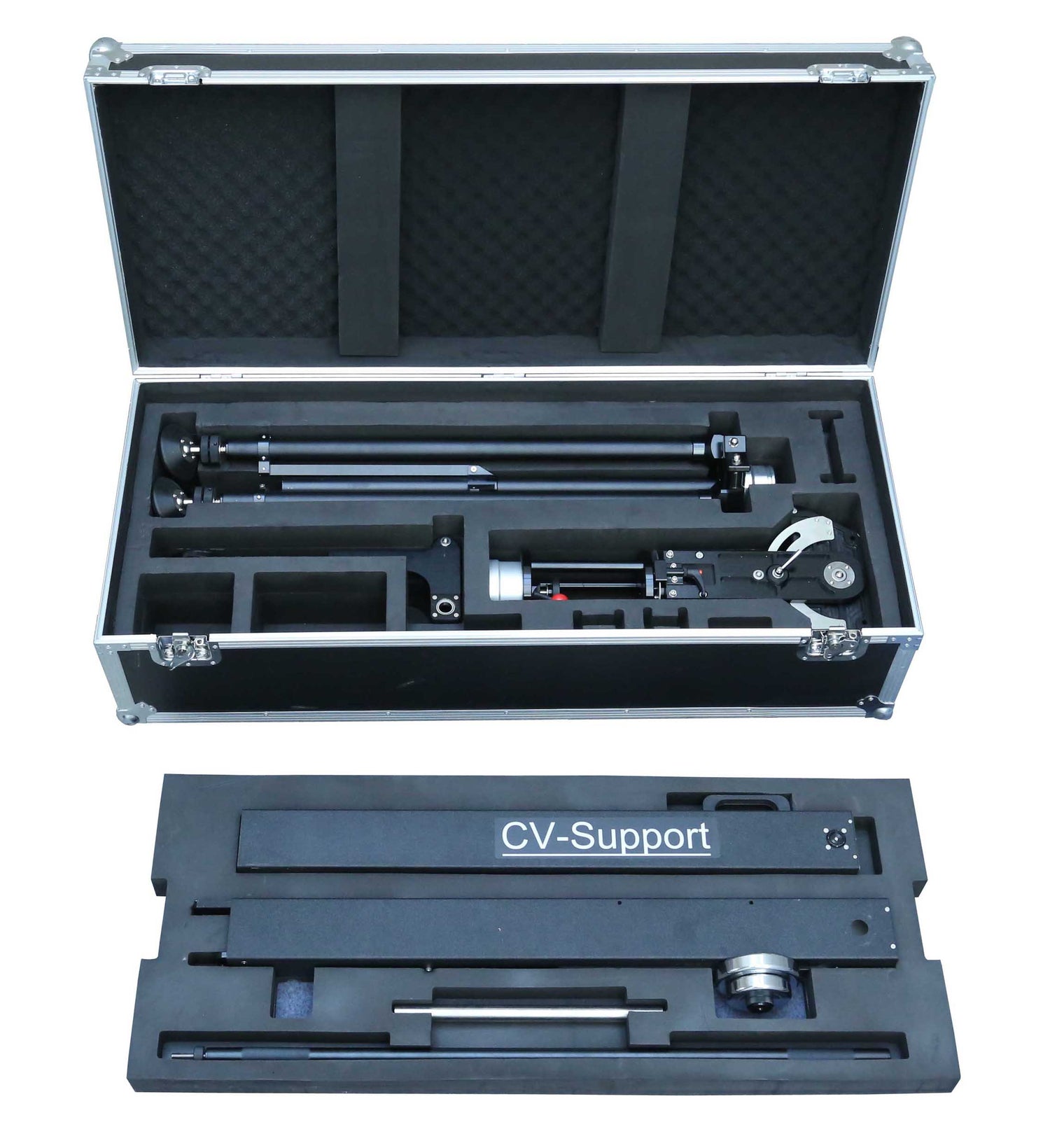

• Hard transport case
• Setup and calibration manual
